Understanding Motorcycle Engine Types and Their Mechanics

Motorcycles gained popularity in the early 20th century, initially as a low-cost alternative to automobiles. They offered increased mobility and freedom, appealing particularly to young adventurers and those needing practical transportation solutions. After World Wars I and II, returning soldiers who had used motorcycles in the service contributed to their rising popularity. Over the decades, the motorcycle evolved from a basic mode of transport into a symbol of freedom, rebellion, and individuality.

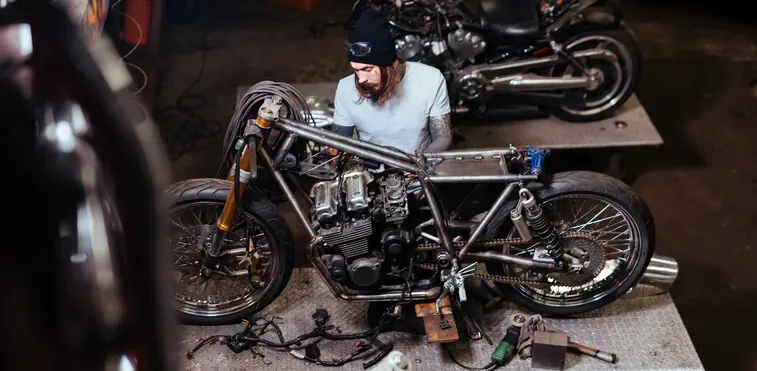

Motorcycles have also long held a place in the hearts of mechanics around the world due to their accessibility and the hands-on nature of their maintenance and repair. The simplicity and exposed components of motorcycles provide an excellent platform for mechanics to learn, experiment, and showcase their skills, leading to a deep appreciation and passion for these impressive machines.

The way a motorcycle’s engine is configured shapes its aesthetics, ergonomics, and performance, but in practical terms, what it really does is give a bike its personality. So if you’re buying a motorcycle, or are still a bit of a noob, here’s what you need to know.

Basics of Motorcycle Engines

The core components of a motorcycle engine include the cylinders, pistons, crankshaft, camshaft, and fuel system. Each plays a critical role in the engine’s function. Cylinders house the pistons, which move up and down, converting the expanding gases from fuel combustion into motion. This motion then turns the crankshaft, which ultimately drives the motorcycle’s wheels.

Motorcycle engines are primarily classified by their operation cycles: two-stroke and four-stroke. Two-stroke engines are lighter and can produce more power relative to their size because they complete a power cycle in only two strokes of the piston. However, they are less fuel-efficient and more polluting than their counterparts. Four-stroke engines, on the other hand, complete a power cycle in four piston strokes, offering better fuel efficiency and lower emissions. They are the standard in modern motorcycle design due to their balance of power and sustainability.

Single Cylinder Engines

Single-cylinder engines, also known as “thumpers,” consist of only one cylinder. This engine type is the simplest and is typically found in entry-level motorcycles. In a four-stroke single-cylinder engine, the operation involves four distinct strokes: intake, compression, power, and exhaust, which complete a single cycle. The movement of the single piston within the cylinder, connected to the crankshaft via a connecting rod, facilitates the conversion of combustion energy into mechanical movement, ultimately driving the motorcycle’s wheels. Maintenance for these engines should include regularly checking the valve clearance, inspecting for piston wear, and ensuring that the cooling system is functioning properly if the engine is liquid-cooled.

Parallel Twin Engines

Two cylinders are positioned side by side in parallel twin engines, and depending on the engine’s design, they can move simultaneously or alternately. Many contemporary motorcycles, primarily street bikes, use this setup. The pistons move in unison to balance engine smoothness and power output, and they have a shared crankshaft. In order to ensure balanced engine performance, maintenance for parallel twin engines usually involves ensuring that both cylinders are synchronized, particularly in terms of fuel delivery (via carburetion or fuel injection) and that both are firing efficiently to maintain balanced engine performance.

V-Twin Engines

V-twin engines are characterized by their two cylinders arranged in a V formation. It’s the engine associated with iconic brands Harley-Davidson and Ducati, and the angle between the two cylinders can vary, influencing the engine’s overall balance and vibration characteristics. The V-twin design allows for a compact engine layout while providing significant torque.

V-twin engine maintenance should include checking valve clearances, ensuring the timing belt or chain is in good condition, and evaluating each cylinder’s components to avoid mechanical faults.

Inline-Four Engines

Four cylinders are positioned in a straight line along the crankshaft in an inline-four engine. Popular sports and high-performance bikes with this engine type are renowned for their smooth running and high RPM capability. In an inline-four engine, each cylinder runs separately yet adds to the engine’s total power production. For an inline-four engine, routine maintenance should involve checking that the timing of the ignition is exact, the cooling system is sufficiently maintained to avoid overheating, and the air/fuel mixture is synced properly in all four cylinders.

Boxer Engines

Boxer engines, notably utilized by BMW, feature a design where two cylinders are positioned opposite each other, resulting in a flat configuration. This layout causes the pistons to move in opposite directions, which creates a naturally balanced engine with reduced vibration. The boxer engine design also typically results in a lower center of gravity compared to other engine configurations.

Maintenance for boxer engines should include regular inspections of seals and gaskets due to the horizontal positioning of the cylinders, as well as ensuring that the engine’s timing and valve clearances are properly adjusted to maintain optimal performance.

Hybrid Motorcycle Technologies

Hybrid motorcycles combine an internal combustion engine (ICE) with one or more electric motors. The primary advantage is improved fuel efficiency and reduced emissions without sacrificing performance. Unlike hybrid cars, hybrid motorcycles are relatively new and less common, but they are gaining traction in the market.

The mechanics of hybrid motorcycles involve the integration of electric motors to assist the ICE, typically during startup and acceleration, which reduces fuel consumption and emissions. They rely on a regenerative braking system, which converts kinetic energy into electrical energy, recharging the battery during deceleration.

Caring for a hybrid motorcycle engine requires understanding the intricacies of battery management, electrical circuits, energy storage, and conversion technologies.

Electric Motorcycle Technologies

Electric motorcycles, on the other hand, offer a different set of challenges because they are powered entirely by electric motors with energy stored in batteries.

The maintenance of electric motorcycles focuses on battery health, including state-of-charge (SOC) and state-of-health (SOH) assessments. You need to be familiar with the battery technology used in motorcycles and understand the factors that affect battery life and performance, like temperature, charging cycles, and storage conditions.

Moreover, you should also be versed in handling high-voltage systems, understanding motor control algorithms, and troubleshooting electrical faults. The absence of traditional engine components shifts the focus toward electronic diagnostics, firmware updates, and software troubleshooting.
